Impact Rate
0-1400 / 0-1800 / 0-3500 / 0-4000
BACK
Impact Driver/Wrench DS-203A
SPECIFICATIONS
Chuck Size
1/4" / 6 (mm)
Max Torque
BIT : 200 (FT-LB) / 270 (Nm) & Drive : F:400 R:430 (FT-LB) / F:540 R: 583 (Nm)
Free Speed
0-1200 (R.P.M) & 0-1900 (R.P.M) & 0-2500 (R.P.M) & 0-3200 (R.P.M)
Net Weight

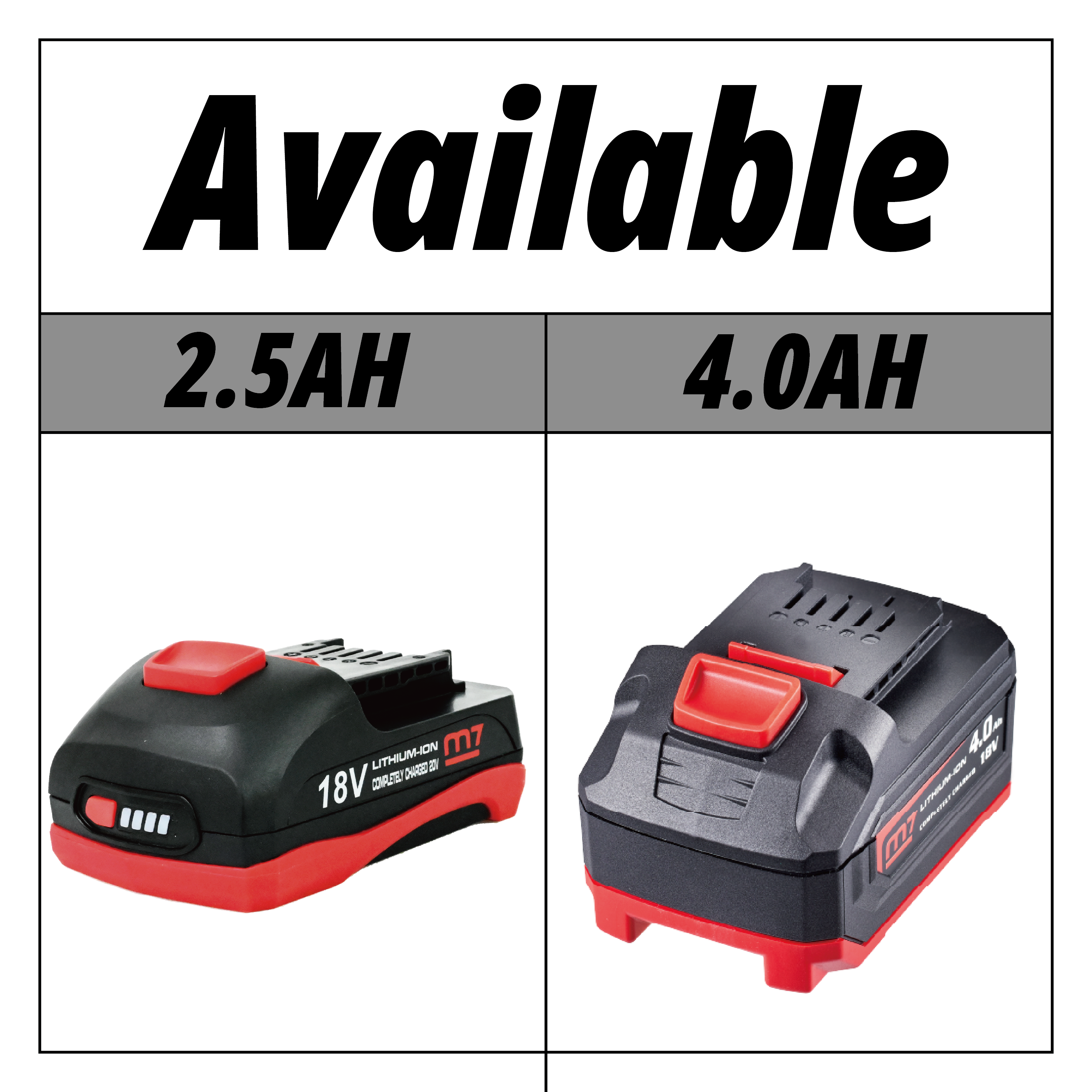

battery 5.0 : 1.76 / battery 2.5 : 1.475
Net Weight
battery 5.0 : 3.88 / battery 2.5 : 3.25
Bolt Capacity
M5-M12
Overall Length
125 (mm)
Torque range (Drive)
140, 180, 280, 400 (FT-LB) / 190, 244, 380, 542 (Nm)
Torque range (Bit)
50, 80, 150, 200 (FT-LB) / 68, 108, 203, 271 (Nm)
FEATURES
+ 3 functions for Forward: For wood, for thin iron sheet, for thick iron sheet. (BIT)
+ Loose stop function in Reverse.
+ Overall Length 125 mm.
+ Bare tool weight 1.0 kg.
+ DS-203 is can be used with a 1/2" impact socket.
