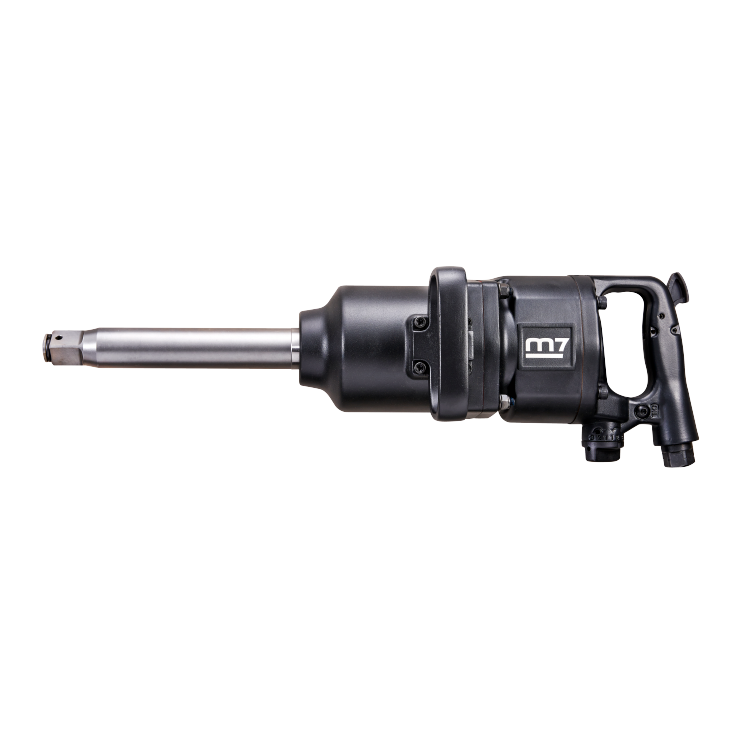

Air Impact Wrench NC-8374-8
NC-8374-8 Contact Us
+ Equipped with Pin-less impact mechanism.
+ Max. torque 2500 ft-lb (reverse in 5 seconds).
Read More +
Download
SPECIFICATIONS
Torque Range
200-2000 (FT-LB) / 271-2712 (Nm)
Max Torque
2500 (FT-LB) / 3390 (Nm)
No Load Speed
3600 (R.P.M)
Avg. Air Consumption
11 (CFM) / 308 (L/min)
Air Pressure
90 (PSI) / 6.3 (bar)
Overall Length
24-1/4" / 615 (mm)
Net Weight
17
Net Weight
37.4
Air Hose
1/2"
Sound Pressure
104 (dBA)
Vibration Level
11.2 (m/s²)
Bolt Capacity
1-27/64" / 36 (mm)
Air inlet
3/8"
