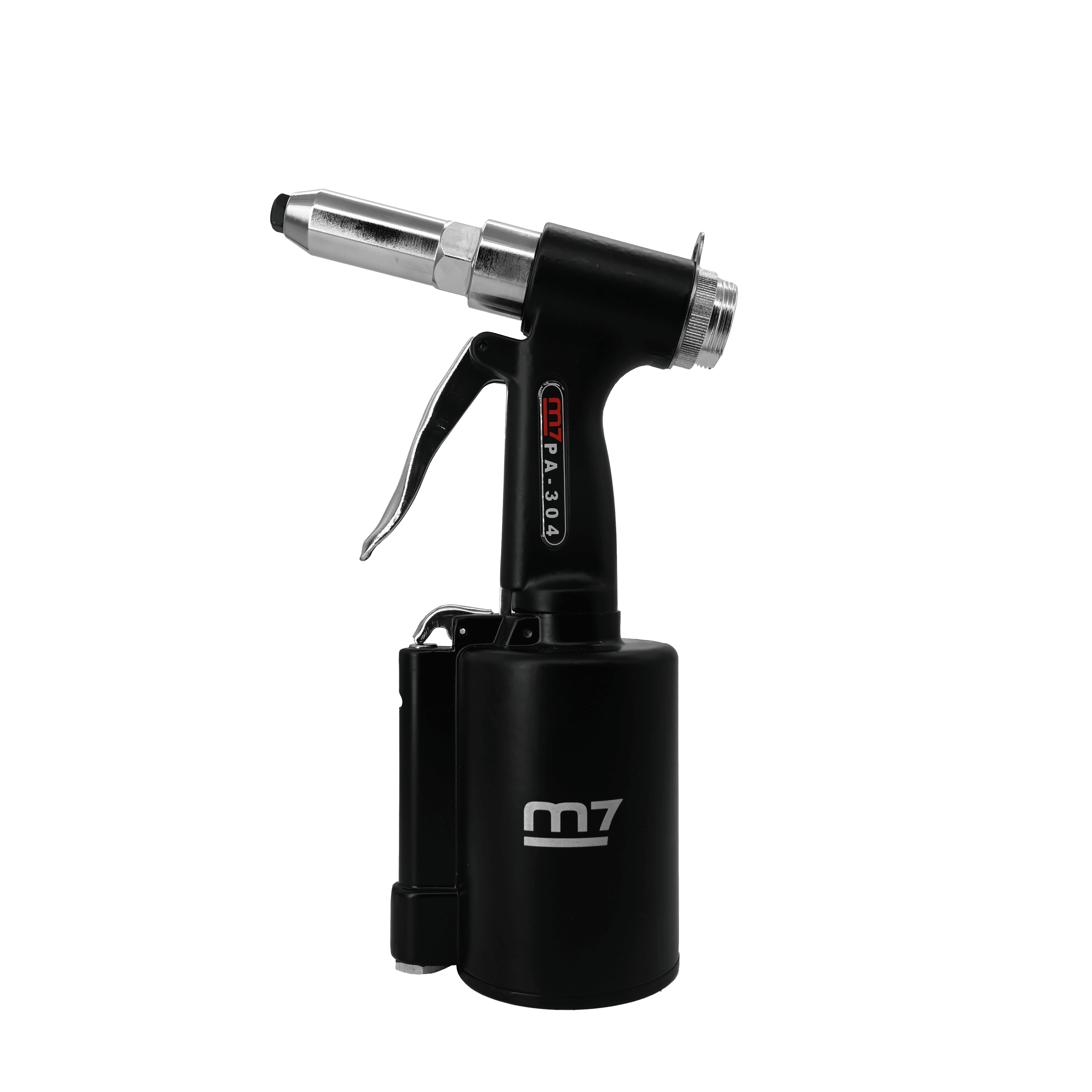

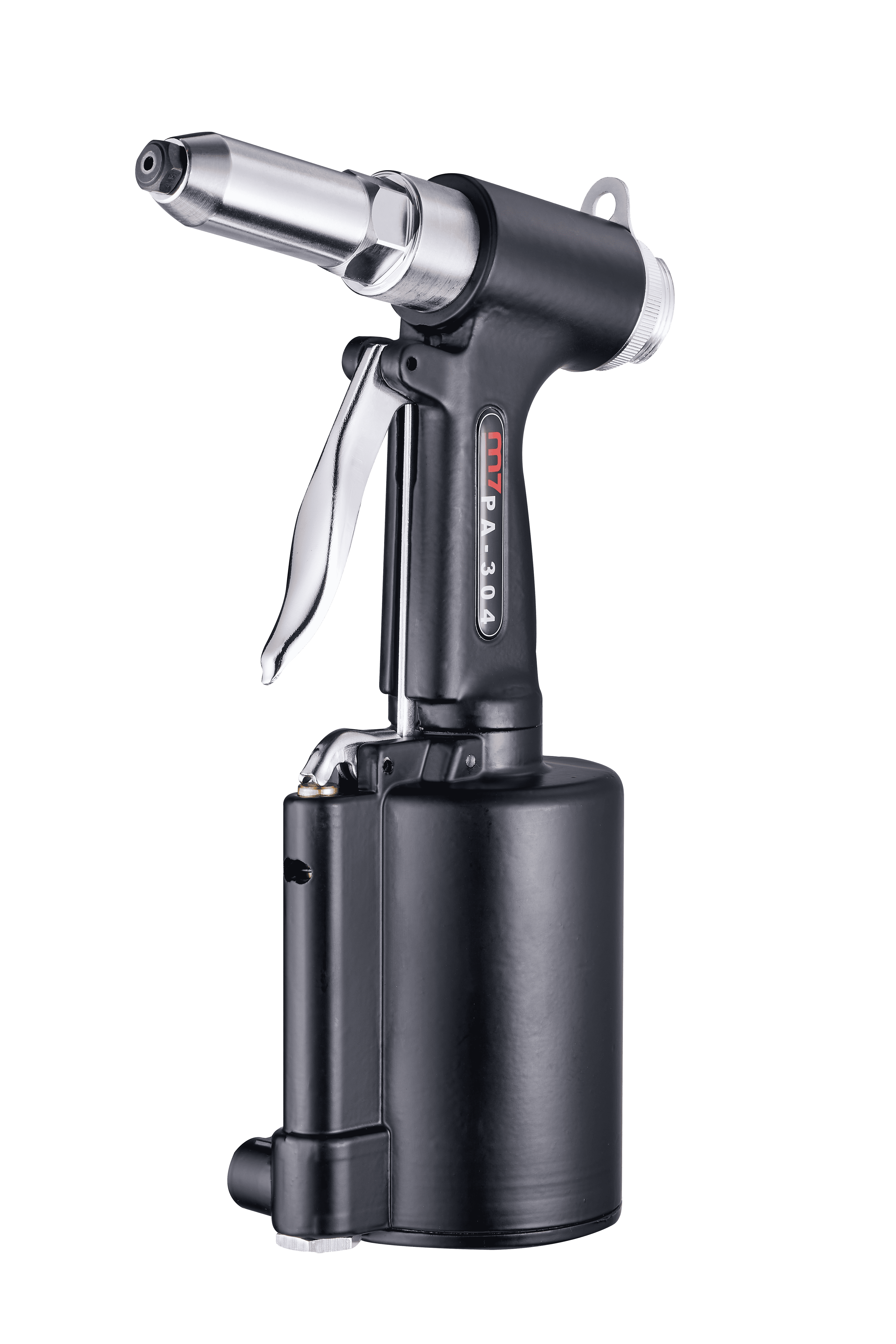

Air Hydraulic Riveter

PA-304 Contact Us

3-Jaw Auto-Centering Grip — grips rivets evenly from three sides to help prevent tilting, slipping and jamming.

Powerful Pulling Force — up to 1,300 kgf maximum pull for demanding riveting work.

Broad Rivet Capacity — suitable for 2.4–4.8 mm blind rivets in aluminium, steel and stainless steel.

Built for High-Volume Work — proven through over 40,000 test pull cycles.

Low-Vibration Comfort — 0.5 m/s² vibration level helps reduce operator fatigue.

Lightweight & Easy to Handle — only 1.41 kg for better control during continuous work.

Reliable Air-Hydraulic Performance — 16 mm stroke length with 90 PSI operating pressure.

Download

SPECIFICATIONS


Traction Power
2200 lb-f / 1000 kgf

Capacity
2.4–4.8 mm

Avg. Air Consumption
1.48 L/cycle

Air Pressure
90 (PSI) / 6.3 (bar)

Net Weight
1.41 kg

Net Weight
3.11 lb

Air Hose
3/8"

Sound Pressure
79.7 dBA

Vibration Level
0.5 m/s²

Stroke Length
16 (mm)

Air inlet
1/4"
